Vent Plug_D17_E10HO
Vent Valve

Vent Plug_D17_E10HO

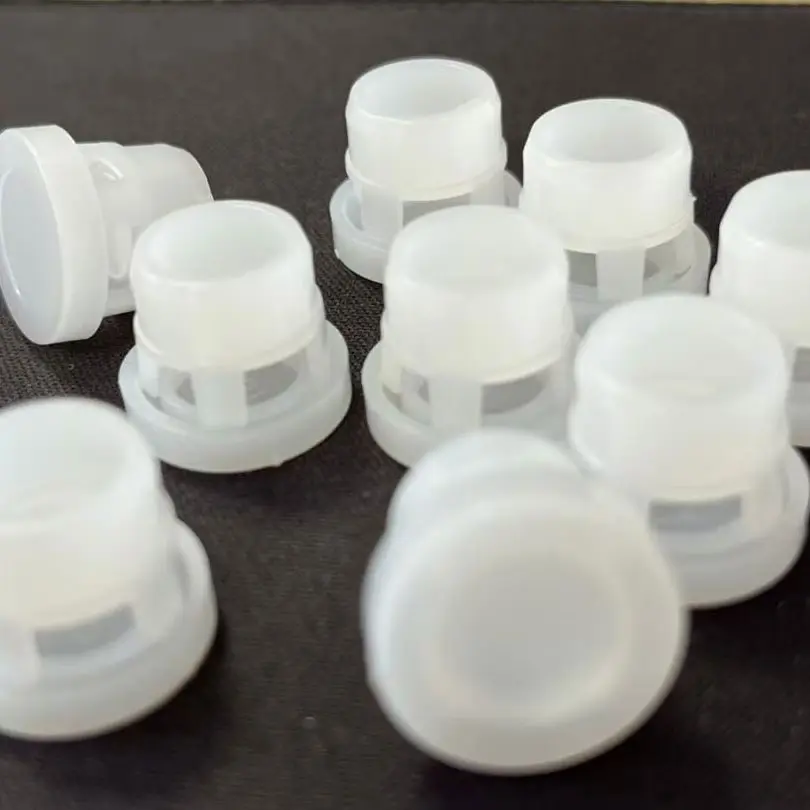

PRODUCT NAME:Snap-In Vent Plug

PRODUCT MODEL:ZZPIP-Vent Plug_D17_E10HO

Note

All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.

All technical information and advice given here is based on Zzpip previous experiences and test results. Zzpip gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.

    Product attributes

    PRODUCT NAME

    Snap-In Vent Plug

    PRODUCT MODEL

    ZZPIP-Vent Plug_D17_E10HO

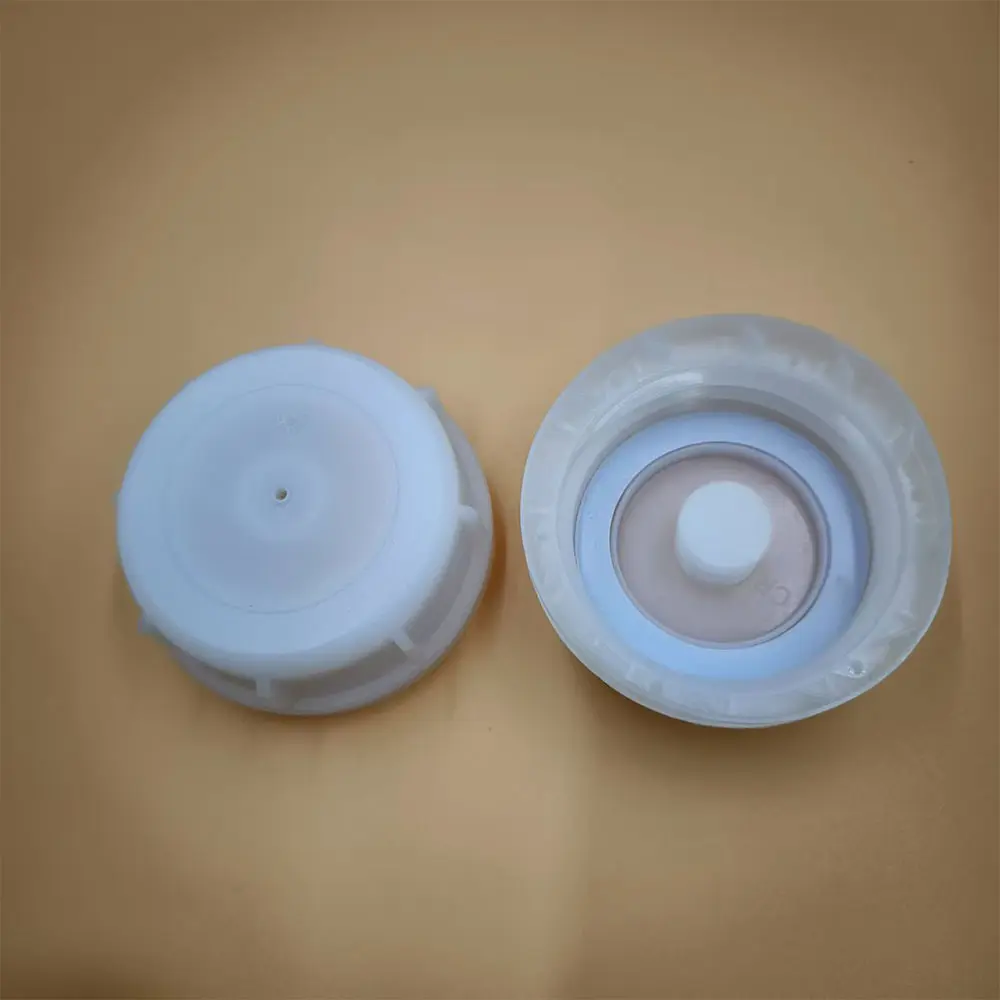

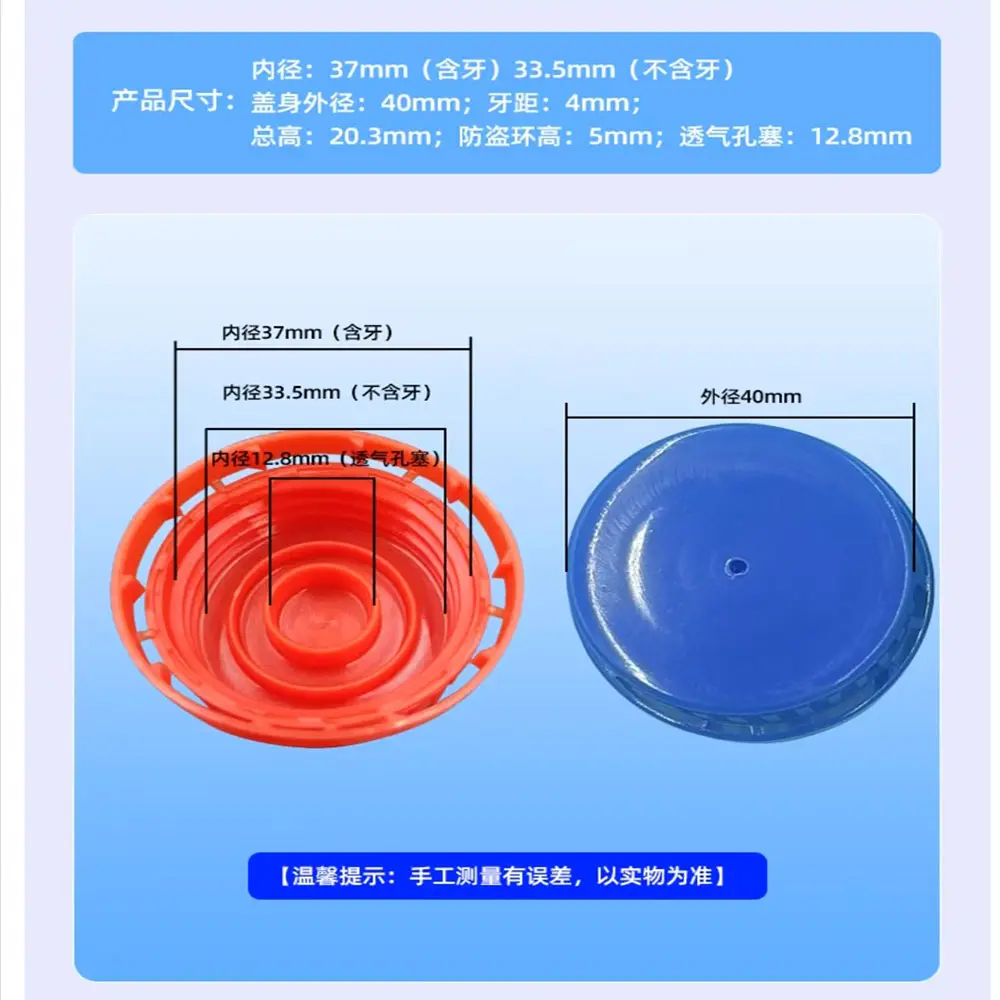

    PRODUCT DIAGRAM

     picture-1-1

    MEMBRANE MODEL

    ZZPIP-E10HO

    APPLICATION FEILD

    Chemicals Packaging

    APPLICATION CHEMICAL:

    Bleacher, Disinfectant, Amino Acid, Agrochemicals, Live bacterial agent, Thick liquid fertilizer

    1
    2
    3

    Product Properties

    PHYSICAL PROPERTIES

    REFERED TEST STANDARD

    UNIT

    TYPICAL DATA

    Plug Material

    /

    /

    HDPE

    Plug Color

    /

    /

    White

    Membrane Construction

    /

    /

    PTFE/PO non-woven

    Membrane Surface Property

    /

    /

    Oleophobic & Hydrophobic

    Minimum Air Flow Rate

    ASTM D737

    ml/min @ 7KPa

    320

    Typical Air Flow Rate

    ASTM D737

    ml/min @ 7KPa

    400

    Water Entry Pressure

    ASTM D751

    KPa dwell 30 sec

    ≥150

    IP Grade

    IEC 60529

    /

    IP67/IP68

    Moisture Vapor Transmission

    ASTM E96

    g/m2/24h

    >5000

    Oleophobic Grade

    AATCC 118

    Grade

    7

    Service Temperature

    IEC 60068-2-14

    -40 ~ 125

    ROHS

    IEC 62321

    /

    Meet ROHS Requirements

    PFOA & PFOS

    US EPA 3550C & US EPA 8321B

    /

    PFOA & PFOS Free

    Application

    This series of vent plug could equalize the pressure differentials of chemical containers which caused by temperature difference, altitude changes and releasing/consuming gases, in order to prevent container deformation and liquid leakage.

    The vent plugs can be used in breathable cap products for chemicals packaging containers, and be suitable for High-concentration Hazardous Chemicals, Low-concentration Household Chemicals, Agricultural Chemicals and other Special Chemicals.

    Shelf Life

    Shelf life is two years from the date of receipt for this product as long as this product is stored in its original packaging in an environment below 80° F (27° C) and 60% RH.

    Note

    All data above are typical data for the membrane raw material, for reference only, and should not be used as special data for outgoing quality control.

    All technical information and advice given here is based on Zzpip previous experiences and test results. Zzpip gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
