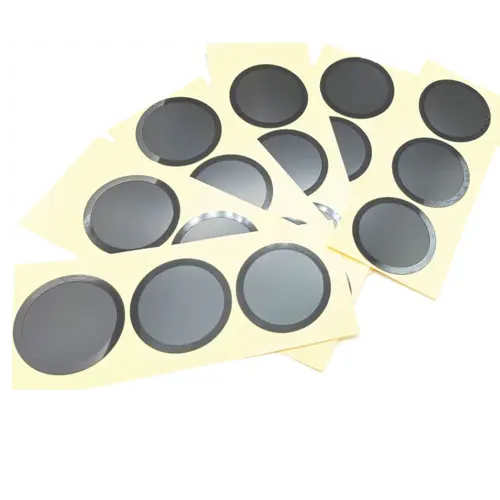

e-PTFE Hydrophobic breathable membrane
Membrane Properties:
|
PHYSICAL PROPERTIES |
REFERED TEST STANDARD |
UNIT |
TYPICAL DATA |
|
Membrane Color |
/ |
/ |
Black |
|
Membrane Construction |
/ |
/ |
Mesh/PTFE
|
|
Membrane Surface Property |
/ |
/ |
Hydrophobic |
|
Thickness |
ISO 534 |
mm |
0.07±0.01 |
|
Interlayer Bonding Strength (90 degree peel) |
Internal Method |
N/inch |
>2 |
|
Min Air Flow Rate |
ASTM D737 (测试面积：1 cm²) |
ml/min/cm²@3Kpa |
>6000 |
|
Typical Air Flow Rate |
ASTM D737 (测试面积：1 cm²) |
ml/min/cm²@ 3Kpa |
9000 |
|
Water Entry Pressure |
ASTM D751 (测试面积：1 cm²) |
KPa for 30 sec |
5 |
|
IP Rating |
IEC 60529 |
/ |
IP64/IP65/IP66 |
|
Water Vapor Transmission Rate |
GB/T 12704.2 （38℃/50%RH、倒杯法） |
g/m2/24h |
>5000 |
|
Oleophobic Grade |
AATCC 118 |
Grade |
NA |
|
Operation Temperature |
IEC 60068-2-14 |
℃ |
-40℃～100℃ |
|
ROHS |
IEC 62321 |
/ |
Meet ROHS Requirements |
|
PFOA & PFOS |
US EPA 3550C & US EPA 8321B |
/ |
PFOA & PFOS Free |
NOTE:
(2)The results are tested using a typical digital output MEMS microphone system and self-designed test device in ZZPIP laboratory with representative sample size. The design of the device will affect final performance.
Application：
The membrane could provide the device with immersed waterproof protection and minimal sound transmission loss, keeping the device with the excellent acoustics transmission performance.
Shelf Life：
Note：
All technical information and advice given here is based on Zzpip’s previous experiences and test results. Zzpip gives this information to the best of its knowledge, but assumes no legal responsibility. Customers are asked to check the suitability and usability in the specific application, since the performance of the product can only be judged when all necessary operating data are available.
